Structure of PIE Elements

Understanding how PIE elements are architected: delivery UI, authoring UI, controllers, and security patterns.

Element Components Overview

Every PIE element is composed of three main components that work together to provide a complete question type experience:

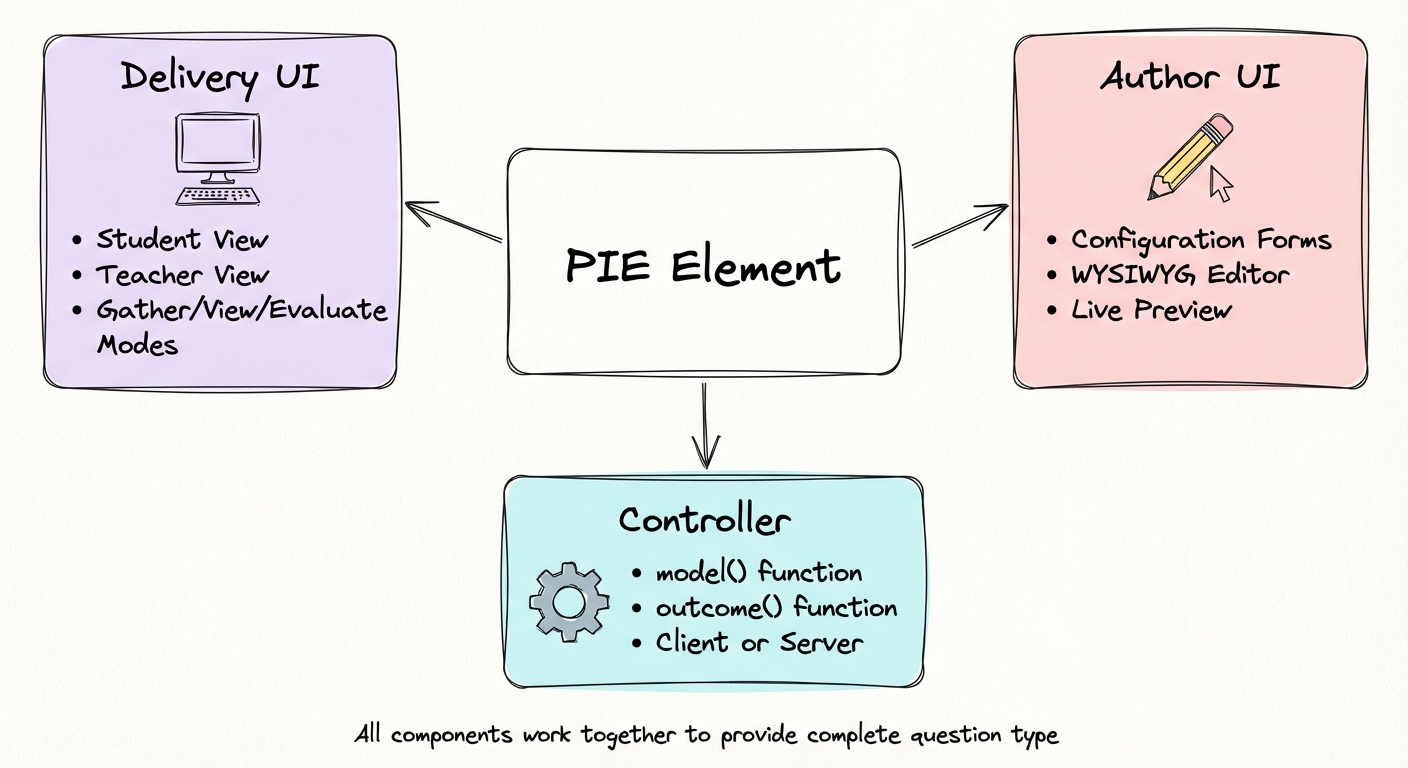

Element Structure Diagram

Delivery UI

The interactive interface students and teachers see during assessment delivery.

  • • Student view (answer questions)
  • • Teacher view (monitor progress)
  • • Mode-aware (gather/view/evaluate)
  • • Web Component (framework-agnostic)

Author UI

Configuration interface where educators create and edit question content.

  • • WYSIWYG editing experience
  • • Form controls and visual editors
  • • Live preview integration
  • • Rich text support
  • • Validation and error handling

Controller

JavaScript/TypeScript logic that transforms data and calculates scores securely.

  • • model() function
  • • outcome() function
  • • Client or server execution
  • • Security filtering by role
  • • Framework-agnostic (pure JS/TS)

Controller Architecture

Controllers are the "brain" of PIE elements. They transform question data based on context and calculate scores while maintaining security.

Why Controllers are Separate

Controllers are implemented as standalone JavaScript/TypeScript functions, separate from the UI components. This separation enables:

  • Flexible deployment: Run on client for testing or server for security
  • Security control: Keep correct answers server-side for high-stakes tests
  • Framework independence: Pure JavaScript works anywhere
  • Testability: Easy to unit test without UI dependencies

Controller Functions

model(question, session, env)

Transforms the question configuration into a view model for the UI based on the current environment (mode and role).

  • • Filters sensitive data (correct answers for students)
  • • Includes/excludes feedback based on mode
  • • Adapts UI hints based on role
  • • Returns only what the user should see

outcome(question, session, env)

Calculates the score (0.0-1.0) and provides feedback based on the student's response.

  • • Compares response to correct answer
  • • Calculates partial credit if applicable
  • • Returns score and completion status
  • • Provides correctness feedback

MVVM Security Model

PIE implements a Model-View-ViewModel (MVVM) pattern with controllers acting as security gateways.

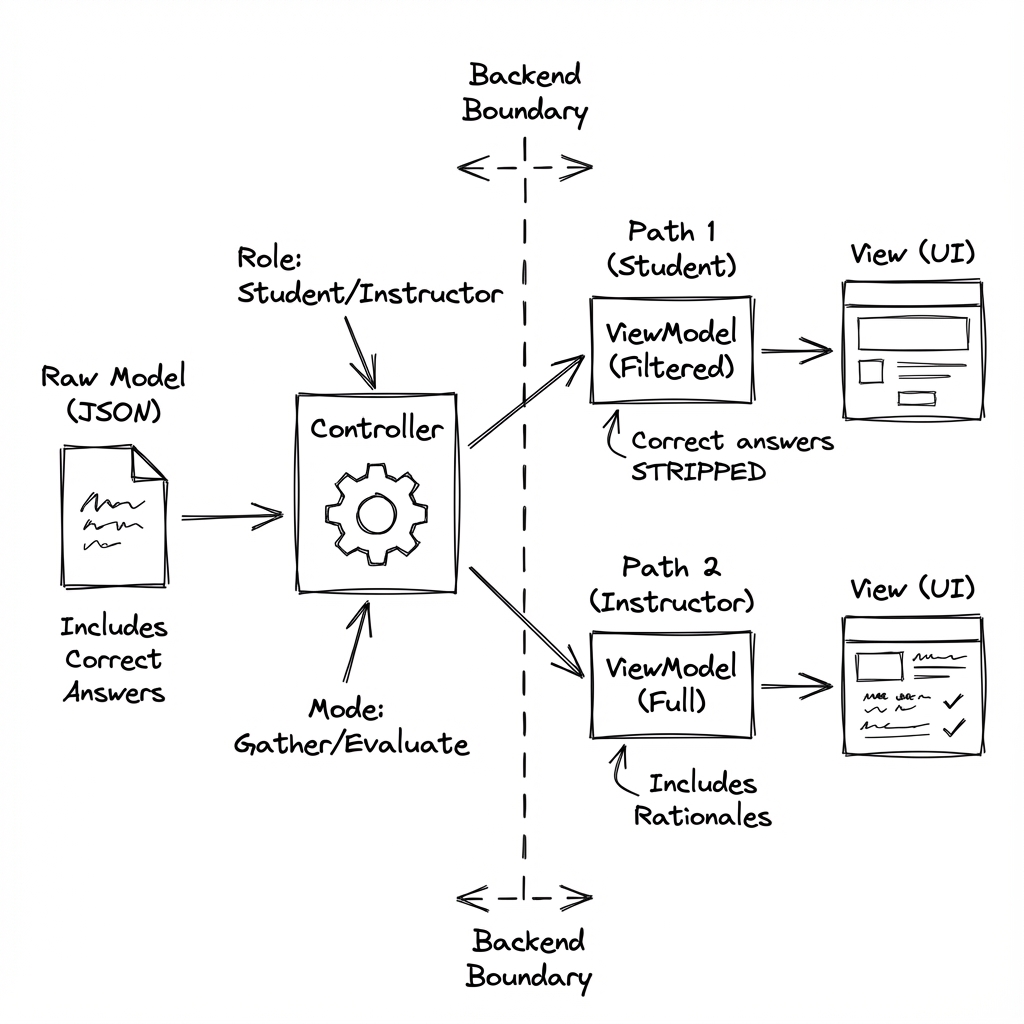

MVVM Security Flow

Client-Side Execution

Controllers run in the browser for development and low-stakes scenarios.

Use cases:

  • Practice quizzes
  • Formative assessments
  • Development and testing
  • Immediate feedback scenarios

Server-Side Execution

Controllers run on your backend for high-stakes assessments requiring answer security.

Use cases:

  • State accountability tests
  • Certification exams
  • Summative assessments
  • Any high-security scenario

Security Consideration

For high-stakes assessments, always run controllers server-side.

Delivery UI

The delivery UI is implemented as an HTML5 Web Component (Custom Element), making it framework-agnostic and universally compatible.

Web Components Standard

PIE elements are packaged as Custom Elements following the Web Components specification:

  • • Native browser standard (no polyfills needed)
  • • Works with React, Vue, Angular, Svelte, vanilla JS
  • • Encapsulated styles (optional shadow DOM)
  • • Standard DOM APIs for integration

Element Properties

Communication Pattern

Properties (Input)

  • model - View model from controller
  • configuration - UI settings
  • disabled - Read-only mode

Events (Output)

  • session-changed - Response updated
  • model-updated - Model changed
  • focus - Element focused

Methods

  • insertImage() - Add images
  • focus() - Set focus
  • validate() - Check validity

Authoring UI

The authoring interface provides a WYSIWYG experience for educators to create and configure questions without writing code.

Configuration Forms

Standard form controls (inputs, selects, checkboxes) for setting element properties.

Rich Text Editors

WYSIWYG editors for prompts, feedback, and any formatted text content.

Live Preview

Real-time preview showing exactly how students will see the question.

High-Level Code Example

Here are simplified examples showing the structure of PIE element components. These are conceptual examples, not full implementations.

Next Steps

Items and Elements

Go back to learn about items vs elements and try a live interactive example.

Players & Toolkit

Learn how players orchestrate elements and how the assessment toolkit provides tools and accommodations.
