Choice and text

Likert

Rate a statement on an agreement scale.

Delivery

Respond, review and evaluate

Authoring

Visual editor available

No print view in this package

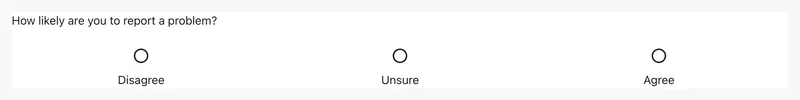

The question "How likely are you to report a problem?" with three radio buttons labelled Disagree, Unsure and Agree. — Likert example

Try the interaction

Live example: @pie-element/likert@5.0.4 · players 1.0.0-beta.5.

Open all examples for this element →

Use it in an item

Map the tag to an exact package version and match the model ID to the markup. The item player loads the views. You can use any frontend framework.

{
  "elements": {
    "likert": "@pie-element/likert@5.0.4"
  },
  "markup": "<likert id=\"example\"></likert>",
  "models": [
    {
      "id": "example",
      "element": "likert",
      "likertScale": "likert3",
      "likertType": "agreement",
      "likertOrientation": "horizontal",
      "choices": [
        {
          "label": "Disagree",
          "value": -1
        },
        {
          "label": "Unsure",
          "value": 0
        },
        {
          "label": "Agree",
          "value": 1
        }
      ],
      "prompt": "How likely are you to report a problem?"
    }
  ]
}

Embed an item · Embed authoring · Print integration

Responses and scoring

The controller defines scoring for this element. Browser scoring returns one outcome per element. Your application combines those outcomes into an item score and handles trusted server scoring.

Scoring, partial credit and rubrics →

Model, configuration and session reference

The model holds content, configuration controls the editor, and the session holds the response. Fields below come from generated JSON Schemas.

Schema version: @pie-element/likert@5.0.6. Example version: 5.0.4. Use the schema matching your content. Schema checks cover data structure; controller validation checks authoring rules.

model fields (15)

Field	Type	Meaning	Default / values
`id`Required	`string`	Identifier to identify the Pie Element in html markup, Must be unique within a pie item config.	`—`
`element`Required	`string`	The html Element tag name: the key in the item config's `elements` map, e.g. "multiple-choice"	`—`
`accessibilityCatalogs`	`array`	QTI-aligned accessibility catalogs whose cards dock to content nodes by `data-catalog-idref`	`—`
`likertScale`	`LikertScale`	Indicates the likert scale	`"likert3"`
`likertType`	`LikertType`	Indicates the likert type	`"agreement"`
`likertOrientation`	`LikertOrientation`	Indicates the likert orientation	`"horizontal"`
`choices`Required	`array`	The choice options for the question	`—`
`prompt`	`string`	The question prompt or item stem	`""`
`promptEnabled`	`boolean`	Not read by the element: the prompt always shows. Default models include it.	`—`
`teacherInstructions`	`string`	Indicates teacher instructions	`""`
`teacherInstructionsEnabled`	`boolean`	Indicates if Teacher Instructions are enabled	`true`
`spellCheckEnabled`	`boolean`	Indicates if spellcheck is enabled for the author. Default value is true	`—`
`scoringType`	`string`	Indicates scoring type; the Settings Panel sets it when the configuration's `scoringType.settings` is set. The likert is not scored.	`—`["auto","rubric"]
`language`	`string`	Language of the teacher instructions toggle labels, e.g. "en-US" or "es-ES"	`—`
`extraCSSRules`	`ExtraCSSRules`	Host-supplied CSS scoped to the element	`—`

Named object types

AccessibilityCatalog

Field	Type	Meaning	Default / values
`identifier`Required	`string`	See the named type or the example model.	`—`
`cards`Required	`array`	See the named type or the example model.	`—`

CatalogCard

Field	Type	Meaning	Default / values
`catalog`Required	`string`	See the named type or the example model.	`—`
`language`	`string`	See the named type or the example model.	`—`
`content`	`string`	See the named type or the example model.	`—`
`payload`	`CatalogCardPayload`	See the named type or the example model.	`—`

SignLanguageCardPayload

Field	Type	Meaning	Default / values
`signLang`	`string`	Language tag for the signed translation — BCP 47, which admits ISO 639-3 subtags for languages with no 639-1/2 code. "ase" is ASL, matching QTI 3 `xml:lang`. This is the language of the adaptation, not the item's base content language (AfA/PNP's `languageOfAdaptation`). The distinction is load bearing: a Spanish item's signed alternate is LSM, not ASL, so `signLang` must never be inferred from the item or assessment content language. Optional, and redundant on almost every card. The card's `language` states the same code and is the only field pie-players resolves a card on — resolution runs before anything knows the card is a signing card, so it can only key on the generic field — and the player falls back to it when this is absent. Author it only where the two differ: a card tagged with the item's content language (`language: 'en-US'`, `signLang: 'ase'`) so resolution reaches it by the default-language rung. The pie-api-aws importer emits `language` alone.	`—`
`media`Required	`MediaAssetRef`	See the named type or the example model.	`—`
`fragment`	`MediaFragmentRange`	See the named type or the example model.	`—`

MediaAssetRef

Field	Type	Meaning	Default / values
`version`Required	`number`	See the named type or the example model.	`—`
`id`Required	`string`	See the named type or the example model.	`—`
`kind`Required	`MediaKind`	See the named type or the example model.	`—`
`sources`Required	`array`	See the named type or the example model.	`—`
`poster`	`string`	See the named type or the example model.	`—`
`thumbnail`	`string`	See the named type or the example model.	`—`
`durationSeconds`	`number`	See the named type or the example model.	`—`
`tracks`	`array`	See the named type or the example model.	`—`
`transcript`	`TranscriptRef`	See the named type or the example model.	`—`
`label`	`string`	See the named type or the example model.	`—`
`description`	`string`	See the named type or the example model.	`—`
`lang`	`string`	Language of the asset itself, as authored metadata. Sign-language cards leave it unset: the card's `language` already states the adaptation language, and a second copy is a second thing to keep in agreement.	`—`

MediaSource

Field	Type	Meaning	Default / values
`src`Required	`string`	See the named type or the example model.	`—`
`type`	`string`	MIME type, e.g. "video/mp4".	`—`
`width`	`number`	See the named type or the example model.	`—`
`height`	`number`	See the named type or the example model.	`—`
`bitrate`	`number`	See the named type or the example model.	`—`

TextTrackRef

Field	Type	Meaning	Default / values
`src`Required	`string`	See the named type or the example model.	`—`
`kind`Required	`string`	See the named type or the example model.	`—`["captions","subtitles","descriptions","chapters","metadata"]
`lang`Required	`string`	See the named type or the example model.	`—`
`label`Required	`string`	See the named type or the example model.	`—`
`default`	`boolean`	See the named type or the example model.	`—`

TranscriptRef

Field	Type	Meaning	Default / values
`src`	`string`	See the named type or the example model.	`—`
`html`	`string`	See the named type or the example model.	`—`
`plainText`	`string`	See the named type or the example model.	`—`
`lang`	`string`	See the named type or the example model.	`—`

MediaFragmentRange

Field	Type	Meaning	Default / values
`startSeconds`Required	`number`	See the named type or the example model.	`—`
`endSeconds`	`number`	See the named type or the example model.	`—`

SpokenAudioCardPayload

Field	Type	Meaning	Default / values
`media`Required	`MediaAssetRef`	See the named type or the example model.	`—`
`fragment`	`MediaFragmentRange`	See the named type or the example model.	`—`

LikertChoice

Field	Type	Meaning	Default / values
`value`Required	`number \| string`	the value that will be stored if this likert choice is selected. Content saved by the legacy author carries it as a string; the author converts it to a number on load.	`—`
`label`Required	`string`	the text label that will be presented to the user for this likert choice	`—`

ExtraCSSRules

Field	Type	Meaning	Default / values
`names`	`array`	See the named type or the example model.	`—`
`rules`	`string`	See the named type or the example model.	`—`

Open the complete JSON Schema

configuration fields (11)

Field	Type	Meaning	Default / values
`baseInputConfiguration`	`EditableHtmlConfigureProp`	Base editable html input configuration regarding plugins that are enabled/disabled E.g. audio, video, image	`—`
`prompt`	`EditableHtmlPluginConfigureRequired`	Configuration for prompt; `settings` is not read: the prompt always shows	`—`
`settingsPanelDisabled`	`boolean`	Indicates if the settings panel is not available	`—`
`spellCheck`	`ConfigurePropWithEnabled`	Configuration for the author's spellcheck: `enabled` is not read, the model's `spellCheckEnabled` sets it	`—`
`teacherInstructions`	`EditableHtmlPluginConfigureRequired`	Teacher Instructions configuration	`—`
`likertChoice`	`EditableHtmlPluginConfigure`	Configuration for likert choice: only `inputConfiguration` is read, for the choice label editors	`—`
`scoringType`	`ConfigureProp`	Settings Panel control for the scoring type	`—`
`contentDimensions`	`ContentDimensions`	Dimensions of the authoring container	`—`
`showPrompt`	`boolean`	Not read by this element: the prompt always shows	`—`
`promptLabel`	`string`	Not read by this element: `prompt.label` labels the prompt	`—`
`settingsPartialScoring`	`boolean`	Not read by this element: the likert is not scored	`—`

Named object types

EditableHtmlConfigureProp

Field	Type	Meaning	Default / values
`math`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`audio`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`video`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`image`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`customPlugins`	`array`	An array of objects that determine custom plugins. A custom plugin is an object which determines how the button will look like (icon) and the event name that will be triggered when the button gets pressed (event).	`—`
`blockquote`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`h3`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`characters`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`bold`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`html`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`italic`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`ol_list`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`redo`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`strikethrough`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`sub`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`sup`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`table`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`ul_list`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`underline`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`undo`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`textAlign`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`showParagraphs`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`separateParagraphs`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`pasteFormatting`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`superscript`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`subscript`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`languageCharacters`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`responseArea`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`

EditableHtmlButtonConfigure

Field	Type	Meaning	Default / values
`disabled`	`boolean`	Indicates if the plugin is disabled or not	`—`

CustomPlugin

Field	Type	Meaning	Default / values
`event`Required	`string`	The name of the custom event. It needs to be valid (only letters, numbers and "_" can be used). The event is emitted with the "PIE-" prefix.	`—`
`iconAlt`Required	`string`	The alt for the custom button icon	`—`
`iconType`Required	`string`	The icon type. Currently, only "SVG" is supported.	`—`
`icon`Required	`string`	The icon string. Currently, only SVG is supported, so it needs to be a valid svg.	`—`

EditableHtmlPluginConfigureRequired

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`
`inputConfiguration`	`EditableHtmlConfigureProp`	Configuration for editable-html	`—`
`required`	`boolean`	Indicates if the item is required and the value cannot be empty	`—`

ConfigurePropWithEnabled

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`
`enabled`	`boolean`	Indicates the value of the item if it affects config-ui (eg.: if item is a switch and displaying an input on the config-ui depends on the switch value: on/off)	`—`

EditableHtmlPluginConfigure

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`
`inputConfiguration`	`EditableHtmlConfigureProp`	Configuration for editable-html	`—`

ConfigureProp

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`

ContentDimensions

Field	Type	Meaning	Default / values
`maxHeight`	`string \| number`	See the named type or the example model.	`—`
`maxWidth`	`string \| number`	See the named type or the example model.	`—`
`minHeight`	`string \| number`	See the named type or the example model.	`—`
`minWidth`	`string \| number`	See the named type or the example model.	`—`

Open the complete JSON Schema

session fields (3)

Field	Type	Meaning	Default / values
`id`	`string`	Identifier of the session	`—`
`element`	`string`	The element the session belongs to	`—`
`value`	`number \| string`	The `value` of the selected choice	`—`

Open the complete JSON Schema

How to use the schemas →

Accessibility and content requirements

PIE targets WCAG 2.2 AA. Provide clear prompts and media alternatives, and test the question with a keyboard and assistive technology. Manual testing is still incomplete; see the coverage notes below.

Accessibility and evidence · Element evidence and manual checks(opens in new tab)

Element package source(opens in new tab) · Example source(opens in new tab) · Snapshot cb30a68f
