Math

Math Inline

Enter a math answer with an on-screen keypad.

Delivery

Respond, review and evaluate

Authoring

Visual editor available

Print view available

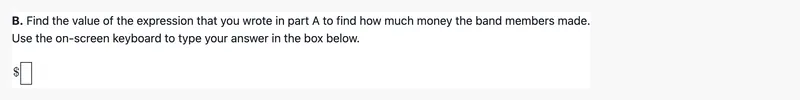

The prompt "B. Find the value of the expression that you wrote in part A to find how much money the band members made. Use the on-screen keyboard to type your answer in the box below." above an empty math answer box after a dollar sign. — Math Inline example

Try the interaction

Live example: @pie-element/math-inline@13.0.4 · players 1.0.0-beta.5.

Open all examples for this element →

Use it in an item

Map the tag to an exact package version and match the model ID to the markup. The item player loads the views. You can use any frontend framework.

{
  "elements": {
    "math-inline": "@pie-element/math-inline@13.0.4"
  },
  "markup": "<math-inline id=\"example\"></math-inline>",
  "models": [
    {
      "id": "example",
      "element": "math-inline",
      "equationEditor": 3,
      "toolbarEditorPosition": "bottom",
      "prompt": "<p><strong>B.</strong> Find the value of the expression that you wrote in part A to find how much money the band members made.</p>\n\n<p>Use the on-screen keyboard to type your answer in the box below.</p>\n",
      "expression": "${{response}}",
      "responses": [
        {
          "allowSpaces": true,
          "answer": "$410",
          "id": "1"
        }
      ],
      "responseType": "Advanced Multi",
      "rubricEnabled": false
    }
  ]
}

Embed an item · Embed authoring · Print integration

Responses and scoring

The controller defines scoring for this element. Browser scoring returns one outcome per element. Your application combines those outcomes into an item score and handles trusted server scoring.

Scoring, partial credit and rubrics →

Model, configuration and session reference

The model holds content, configuration controls the editor, and the session holds the response. Fields below come from generated JSON Schemas.

Schema version: @pie-element/math-inline@13.0.6. Example version: 13.0.4. Use the schema matching your content. Schema checks cover data structure; controller validation checks authoring rules.

model fields (34)

Field	Type	Meaning	Default / values
`responseType`	`MathInlineResponseType`	Indicates the mode of the question	`"Advanced Multi"`
`prompt`	`string`	The item stem for the question	`—`
`promptEnabled`	`boolean`	Determines if prompt should show	`—`
`expression`	`string`	Indicates the expression for advanced mode; each `{{response}}` is a response area	`—`
`equationEditor`	`EquationEditor`	Indicates what type of editor should be displayed for all the possible responses	`"8"`
`promptEquationEditor`	`EquationEditor`	Indicates the editor the author uses for the response template in advanced mode	`"8"`
`feedback`	`ComplexFeedback`	Feedback configuration for the responses	`—`
`responses`	`array`	Array of all correct responses; if responseType is Simple, only first element in array is used	`—`
`defaultResponse`	`MathInlineResponse`	Not read by the element: the first of `responses` is the default correct response	`—`
`partialScoring`	`boolean`	Not read by the element	`—`
`validationDefault`	`string`	Indicates the default value for validation, in case that it's not set on a response	`"literal"`["literal","symbolic"]
`ignoreOrderDefault`	`boolean`	Indicates the default value for ignoreOrder, in case that it's not set	`false`
`allowTrailingZerosDefault`	`boolean`	Indicates the default value for allowTrailingZeros, in case that it's not set	`false`
`rationale`	`string`	Indicates the value for rationale	`—`
`scoringType`	`string`	Indicates scoring type	`—`["auto","rubric"]
`studentInstructions`	`string`	Not read by the element	`—`
`teacherInstructions`	`string`	Indicates teacher instructions	`—`
`customKeys`	`array`	Extra buttons defined by user	`—`
`feedbackEnabled`	`boolean`	Indicates if Feedback is enabled	`—`
`rationaleEnabled`	`boolean`	Indicates if Rationale are enabled	`—`
`spellCheckEnabled`	`boolean`	Indicates if spellcheck is enabled for the author. Default value is true	`—`
`studentInstructionsEnabled`	`boolean`	Indicates if Student Instructions are enabled	`—`
`teacherInstructionsEnabled`	`boolean`	Indicates if Teacher Instructions are enabled	`—`
`note`	`string`	Indicates the note for the answer; a translated default note applies when it is not set	`—`
`toolbarEditorPosition`	`string`	Indicates the editor's toolbar position which can be 'bottom' or 'top'	`"bottom"`["bottom","top"]
`rubricEnabled`	`boolean`	Indicates if Rubric is enabled	`—`
`language`	`string`	Indicates the language of the component Supported options: en, es, en_US, en-US, es_ES, es-ES, es_MX, es-MX	`—`
`extraCSSRules`	`ExtraCSSRules`	Host-supplied CSS scoped to the element	`—`
`ignoreOrder`	`MathInlineToggle`	Not read by the element: the settings panel's Ignore Order toggle writes it, and the response editor reads `configuration.ignoreOrder.enabled` instead	`—`
`allowTrailingZeros`	`MathInlineToggle`	Not read by the element: the settings panel's Allow Trailing Zeros toggle writes it, and the response editor reads `configuration.allowTrailingZeros.enabled` instead	`—`
`id`Required	`string`	Identifier to identify the Pie Element in html markup, Must be unique within a pie item config.	`—`
`element`Required	`string`	The html Element tag name: the key in the item config's `elements` map, e.g. "multiple-choice"	`—`
`accessibilityCatalogs`	`array`	QTI-aligned accessibility catalogs whose cards dock to content nodes by `data-catalog-idref`	`—`
`config`	`MathInlineModelSettings`	Not read by the element: the controller's `createDefaultModel()` nests the default model under `config`, as legacy does	`—`

Named object types

ComplexFeedback

Field	Type	Meaning	Default / values
`correct`Required	`FeedbackLevel`	Indicates the configuration for feedback when answer is correct	`—`
`incorrect`Required	`FeedbackLevel`	Indicates the configuration for feedback when answer is incorrect	`—`
`partial`	`FeedbackLevel`	Indicates the configuration for feedback when answer is partially correct	`—`

FeedbackLevel

Field	Type	Meaning	Default / values
`type`Required	`string`	Indicates the feedback type	`—`["default","custom","none"]
`default`	`string`	Indicates the feedback value	`—`
`custom`	`string`	Indicates the feedback custom value	`—`

MathInlineResponse

Field	Type	Meaning	Default / values
`id`Required	`number \| string`	The id of the response	`—`
`validation`	`string`	Indicates what type of validation should be applied on the response; the model's `validationDefault` applies when it is not set	`—`["literal","symbolic"]
`ignoreOrder`	`boolean`	Indicates if the order of expression elements in literal validation can be ignore - whilst the expression is still mathematically correct; the model's `ignoreOrderDefault` applies when it is not set	`—`
`allowTrailingZeros`	`boolean`	Indicates the allowance of trailing zeros in expressions - whilst the expression is still mathematically correct; the model's `allowTrailingZerosDefault` applies when it is not set	`—`
`answer`Required	`string`	The answer for the question	`—`
`alternates`	`object`	Alternative correct answers, keyed by alternate id	`—`

ExtraCSSRules

Field	Type	Meaning	Default / values
`names`	`array`	See the named type or the example model.	`—`
`rules`	`string`	See the named type or the example model.	`—`

MathInlineToggle

Field	Type	Meaning	Default / values
`enabled`	`boolean`	See the named type or the example model.	`—`

AccessibilityCatalog

Field	Type	Meaning	Default / values
`identifier`Required	`string`	See the named type or the example model.	`—`
`cards`Required	`array`	See the named type or the example model.	`—`

CatalogCard

Field	Type	Meaning	Default / values
`catalog`Required	`string`	See the named type or the example model.	`—`
`language`	`string`	See the named type or the example model.	`—`
`content`	`string`	See the named type or the example model.	`—`
`payload`	`CatalogCardPayload`	See the named type or the example model.	`—`

SignLanguageCardPayload

Field	Type	Meaning	Default / values
`signLang`	`string`	Language tag for the signed translation — BCP 47, which admits ISO 639-3 subtags for languages with no 639-1/2 code. "ase" is ASL, matching QTI 3 `xml:lang`. This is the language of the adaptation, not the item's base content language (AfA/PNP's `languageOfAdaptation`). The distinction is load bearing: a Spanish item's signed alternate is LSM, not ASL, so `signLang` must never be inferred from the item or assessment content language. Optional, and redundant on almost every card. The card's `language` states the same code and is the only field pie-players resolves a card on — resolution runs before anything knows the card is a signing card, so it can only key on the generic field — and the player falls back to it when this is absent. Author it only where the two differ: a card tagged with the item's content language (`language: 'en-US'`, `signLang: 'ase'`) so resolution reaches it by the default-language rung. The pie-api-aws importer emits `language` alone.	`—`
`media`Required	`MediaAssetRef`	See the named type or the example model.	`—`
`fragment`	`MediaFragmentRange`	See the named type or the example model.	`—`

MediaAssetRef

Field	Type	Meaning	Default / values
`version`Required	`number`	See the named type or the example model.	`—`
`id`Required	`string`	See the named type or the example model.	`—`
`kind`Required	`MediaKind`	See the named type or the example model.	`—`
`sources`Required	`array`	See the named type or the example model.	`—`
`poster`	`string`	See the named type or the example model.	`—`
`thumbnail`	`string`	See the named type or the example model.	`—`
`durationSeconds`	`number`	See the named type or the example model.	`—`
`tracks`	`array`	See the named type or the example model.	`—`
`transcript`	`TranscriptRef`	See the named type or the example model.	`—`
`label`	`string`	See the named type or the example model.	`—`
`description`	`string`	See the named type or the example model.	`—`
`lang`	`string`	Language of the asset itself, as authored metadata. Sign-language cards leave it unset: the card's `language` already states the adaptation language, and a second copy is a second thing to keep in agreement.	`—`

MediaSource

Field	Type	Meaning	Default / values
`src`Required	`string`	See the named type or the example model.	`—`
`type`	`string`	MIME type, e.g. "video/mp4".	`—`
`width`	`number`	See the named type or the example model.	`—`
`height`	`number`	See the named type or the example model.	`—`
`bitrate`	`number`	See the named type or the example model.	`—`

TextTrackRef

Field	Type	Meaning	Default / values
`src`Required	`string`	See the named type or the example model.	`—`
`kind`Required	`string`	See the named type or the example model.	`—`["captions","subtitles","descriptions","chapters","metadata"]
`lang`Required	`string`	See the named type or the example model.	`—`
`label`Required	`string`	See the named type or the example model.	`—`
`default`	`boolean`	See the named type or the example model.	`—`

TranscriptRef

Field	Type	Meaning	Default / values
`src`	`string`	See the named type or the example model.	`—`
`html`	`string`	See the named type or the example model.	`—`
`plainText`	`string`	See the named type or the example model.	`—`
`lang`	`string`	See the named type or the example model.	`—`

MediaFragmentRange

Field	Type	Meaning	Default / values
`startSeconds`Required	`number`	See the named type or the example model.	`—`
`endSeconds`	`number`	See the named type or the example model.	`—`

SpokenAudioCardPayload

Field	Type	Meaning	Default / values
`media`Required	`MediaAssetRef`	See the named type or the example model.	`—`
`fragment`	`MediaFragmentRange`	See the named type or the example model.	`—`

MathInlineModelSettings

Field	Type	Meaning	Default / values
`responseType`	`MathInlineResponseType`	Indicates the mode of the question	`"Advanced Multi"`
`prompt`	`string`	The item stem for the question	`—`
`promptEnabled`	`boolean`	Determines if prompt should show	`—`
`expression`	`string`	Indicates the expression for advanced mode; each `{{response}}` is a response area	`—`
`equationEditor`	`EquationEditor`	Indicates what type of editor should be displayed for all the possible responses	`"8"`
`promptEquationEditor`	`EquationEditor`	Indicates the editor the author uses for the response template in advanced mode	`"8"`
`feedback`	`ComplexFeedback`	Feedback configuration for the responses	`—`
`responses`	`array`	Array of all correct responses; if responseType is Simple, only first element in array is used	`—`
`defaultResponse`	`MathInlineResponse`	Not read by the element: the first of `responses` is the default correct response	`—`
`partialScoring`	`boolean`	Not read by the element	`—`
`validationDefault`	`string`	Indicates the default value for validation, in case that it's not set on a response	`"literal"`["literal","symbolic"]
`ignoreOrderDefault`	`boolean`	Indicates the default value for ignoreOrder, in case that it's not set	`false`
`allowTrailingZerosDefault`	`boolean`	Indicates the default value for allowTrailingZeros, in case that it's not set	`false`
`rationale`	`string`	Indicates the value for rationale	`—`
`scoringType`	`string`	Indicates scoring type	`—`["auto","rubric"]
`studentInstructions`	`string`	Not read by the element	`—`
`teacherInstructions`	`string`	Indicates teacher instructions	`—`
`customKeys`	`array`	Extra buttons defined by user	`—`
`feedbackEnabled`	`boolean`	Indicates if Feedback is enabled	`—`
`rationaleEnabled`	`boolean`	Indicates if Rationale are enabled	`—`
`spellCheckEnabled`	`boolean`	Indicates if spellcheck is enabled for the author. Default value is true	`—`
`studentInstructionsEnabled`	`boolean`	Indicates if Student Instructions are enabled	`—`
`teacherInstructionsEnabled`	`boolean`	Indicates if Teacher Instructions are enabled	`—`
`note`	`string`	Indicates the note for the answer; a translated default note applies when it is not set	`—`
`toolbarEditorPosition`	`string`	Indicates the editor's toolbar position which can be 'bottom' or 'top'	`"bottom"`["bottom","top"]
`rubricEnabled`	`boolean`	Indicates if Rubric is enabled	`—`
`language`	`string`	Indicates the language of the component Supported options: en, es, en_US, en-US, es_ES, es-ES, es_MX, es-MX	`—`
`extraCSSRules`	`ExtraCSSRules`	Host-supplied CSS scoped to the element	`—`
`ignoreOrder`	`MathInlineToggle`	Not read by the element: the settings panel's Ignore Order toggle writes it, and the response editor reads `configuration.ignoreOrder.enabled` instead	`—`
`allowTrailingZeros`	`MathInlineToggle`	Not read by the element: the settings panel's Allow Trailing Zeros toggle writes it, and the response editor reads `configuration.allowTrailingZeros.enabled` instead	`—`

Open the complete JSON Schema

configuration fields (24)

Field	Type	Meaning	Default / values
`baseInputConfiguration`	`EditableHtmlConfigureProp`	Base editable html input configuration regarding plugins that are enabled/disabled E.g. audio, video, image	`—`
`prompt`	`EditableHtmlPluginConfigureRequired`	Configuration for prompt	`—`
`feedback`	`ConfigureProp`	Settings Panel control for feedback	`—`
`responseType`	`ConfigureProp`	Configuration for response type	`—`
`partialScoring`	`ConfigureProp`	Not read by this element	`—`
`rationale`	`EditableHtmlPluginConfigureRequired`	Rationale configuration	`—`
`settingsPanelDisabled`	`boolean`	Indicates if the settings panel is not available	`—`
`spellCheck`	`ConfigurePropWithEnabled`	Configuration for the author's spellcheck; `enabled` is not read	`—`
`scoringType`	`ConfigureProp`	Scoring Type configuration	`—`
`studentInstructions`	`ConfigureProp`	Student Instructions configuration	`—`
`teacherInstructions`	`EditableHtmlPluginConfigureRequired`	Teacher Instructions configuration	`—`
`ignoreOrder`	`ConfigurePropWithEnabled`	Ignore Order configuration; `enabled` shows the control on each response	`—`
`allowTrailingZeros`	`ConfigurePropWithEnabled`	Allow Trailing Zeros configuration; `enabled` shows the control on each response	`—`
`maxResponseAreas`	`number`	Maximum number of response areas	`—`
`maxImageWidth`	`ConfigureMaxImageDimensionsProp`	Maximum image width for input fields	`—`
`maxImageHeight`	`ConfigureMaxImageDimensionsProp`	Maximum image height for input fields	`—`
`withRubric`	`ConfigureProp`	Rubric configuration - only relevant in environments that use pie-player-components	`—`
`mathMlOptions`	`ConfigureMathMLProp`	Configuration for editable-html	`—`
`language`	`ConfigurePropWithEnabled`	Language configuration	`—`
`languageChoices`	`ConfigureLanguageOptions`	Language choices configuration Only available if language is enabled	`—`
`contentDimensions`	`ContentDimensions`	Dimensions of the authoring container	`—`
`showPrompt`	`boolean`	Not read by this element: the model's `promptEnabled` shows the prompt	`—`
`promptLabel`	`string`	Not read by this element: `prompt.label` labels the prompt	`—`
`settingsPartialScoring`	`boolean`	Not read by this element	`—`

Named object types

EditableHtmlConfigureProp

Field	Type	Meaning	Default / values
`math`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`audio`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`video`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`image`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`customPlugins`	`array`	An array of objects that determine custom plugins. A custom plugin is an object which determines how the button will look like (icon) and the event name that will be triggered when the button gets pressed (event).	`—`
`blockquote`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`h3`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`characters`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`bold`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`html`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`italic`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`ol_list`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`redo`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`strikethrough`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`sub`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`sup`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`table`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`ul_list`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`underline`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`undo`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`textAlign`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`showParagraphs`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`separateParagraphs`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`pasteFormatting`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`superscript`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`subscript`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`languageCharacters`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`
`responseArea`	`EditableHtmlButtonConfigure`	See the named type or the example model.	`—`

EditableHtmlButtonConfigure

Field	Type	Meaning	Default / values
`disabled`	`boolean`	Indicates if the plugin is disabled or not	`—`

CustomPlugin

Field	Type	Meaning	Default / values
`event`Required	`string`	The name of the custom event. It needs to be valid (only letters, numbers and "_" can be used). The event is emitted with the "PIE-" prefix.	`—`
`iconAlt`Required	`string`	The alt for the custom button icon	`—`
`iconType`Required	`string`	The icon type. Currently, only "SVG" is supported.	`—`
`icon`Required	`string`	The icon string. Currently, only SVG is supported, so it needs to be a valid svg.	`—`

EditableHtmlPluginConfigureRequired

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`
`inputConfiguration`	`EditableHtmlConfigureProp`	Configuration for editable-html	`—`
`required`	`boolean`	Indicates if the item is required and the value cannot be empty	`—`

ConfigureProp

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`

ConfigurePropWithEnabled

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`
`enabled`	`boolean`	Indicates the value of the item if it affects config-ui (eg.: if item is a switch and displaying an input on the config-ui depends on the switch value: on/off)	`—`

ConfigureMaxImageDimensionsProp

Field	Type	Meaning	Default / values
`teacherInstructions`	`number`	Indicates the max dimension for images in teacher instructions	`—`
`prompt`	`number`	Indicates the max dimension for images in prompt - this is also the default dimension for all other input fields if it's not specified	`—`
`rationale`	`number`	Indicates the max dimension for images in rationale	`—`

ConfigureMathMLProp

Field	Type	Meaning	Default / values
`mmlOutput`	`boolean`	Indicates if model should have mathML output instead of latex	`—`
`mmlEditing`	`boolean`	Indicates if mathML that's already in model should be editable	`—`

ConfigureLanguageOptions

Field	Type	Meaning	Default / values
`label`Required	`string`	See the named type or the example model.	`—`
`options`Required	`array`	See the named type or the example model.	`—`

ConfigureLanguageOptionsProp

Field	Type	Meaning	Default / values
`value`Required	`string`	Value of the language option	`—`
`label`Required	`string`	Label of the language option	`—`

ContentDimensions

Field	Type	Meaning	Default / values
`maxHeight`	`string \| number`	See the named type or the example model.	`—`
`maxWidth`	`string \| number`	See the named type or the example model.	`—`
`minHeight`	`string \| number`	See the named type or the example model.	`—`
`minWidth`	`string \| number`	See the named type or the example model.	`—`

Open the complete JSON Schema

session fields (5)

Field	Type	Meaning	Default / values
`id`	`string`	Identifier of the session	`—`
`element`	`string`	The element the session belongs to	`—`
`answers`	`object`	Answers per response area of `expression`, keyed `r1`, `r2`, ... (advanced mode)	`—`
`completeAnswer`	`string`	The whole expression with the learner's answers filled in, as LaTeX (advanced mode)	`—`
`response`	`string`	The learner's answer, as LaTeX (simple mode)	`—`

Named object types

MathInlineAnswer

Field	Type	Meaning	Default / values
`value`Required	`string`	See the named type or the example model.	`—`

Open the complete JSON Schema

How to use the schemas →

Accessibility and content requirements

PIE targets WCAG 2.2 AA. Provide clear prompts and media alternatives, and test the question with a keyboard and assistive technology. Manual testing is still incomplete; see the coverage notes below.

Accessibility and evidence · Element evidence and manual checks(opens in new tab)

Element package source(opens in new tab) · Example source(opens in new tab) · Snapshot cb30a68f
