Content and scoring
Passage
Read passages in tabs.
Delivery
Respond, review and evaluate
Authoring
Visual editor available
Print view available

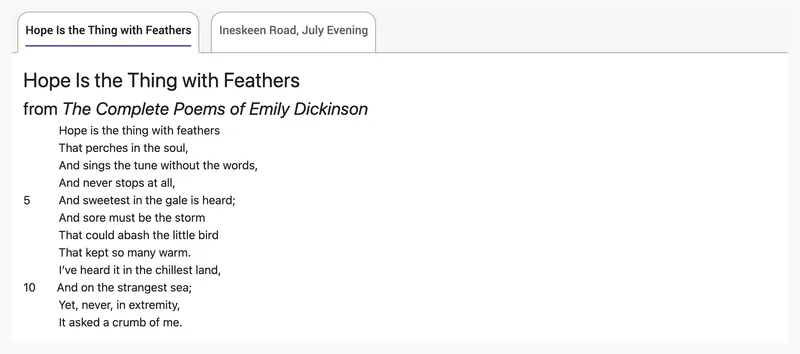

Try the interaction
Live example: @pie-element/passage@8.0.4 · players 1.0.0-beta.5.
Open all examples for this element →Use it in an item
Map the tag to an exact package version and match the model ID to the markup. The item player loads the views. You can use any frontend framework.
{
"elements": {
"passage": "@pie-element/passage@8.0.4"
},
"markup": "<passage id=\"example\"></passage>",
"models": [
{
"id": "example",
"element": "passage",
"passages": [
{
"teacherInstructions": "Teacher instructions for first tab",
"title": "Hope Is the Thing with Feathers",
"subtitle": "from <em>The Complete Poems of Emily Dickinson</em>",
"author": "by Emily Dickinson",
"text": "<p><font style=\"visibility:hidden\">00000</font>Hope is the thing with feathers<br /><font style=\"visibility:hidden\">00000</font>That perches in the soul,<br /><font style=\"visibility:hidden\">00000</font>And sings the tune without the words,<br /><font style=\"visibility:hidden\">00000</font>And never stops at all,</p><p>5<font style=\"visibility:hidden\">0000</font>And sweetest in the gale is heard;<br /><font style=\"visibility:hidden\">00000</font>And sore must be the storm<br /><font style=\"visibility:hidden\">00000</font>That could abash the little bird<br /><font style=\"visibility:hidden\">00000</font>That kept so many warm.</p><p><font style=\"visibility:hidden\">00000</font>I’ve heard it in the chillest land,<br />10<font style=\"visibility:hidden\">000</font>And on the strangest sea;<br /><font style=\"visibility:hidden\">00000</font>Yet, never, in extremity,<br /><font style=\"visibility:hidden\">00000</font>It asked a crumb of me.</p>"
},
{
"title": "Ineskeen Road, July Evening",
"text": "The bicycles go by in twos and threes -<br/>\n There's a dance in Billy Brennan's barn tonight,<br/>\n And there's the half-talk code of mysteries<br/>\n And the wink-and-elbow language of delight.<br/>\n Half-past eight and there is not a spot<br/>\n Upon a mile of road, no shadow thrown<br/>\n That might turn out a man or woman, not<br/>\n A footfall tapping secrecies of stone. <br/>\n <p/>\n I have what every poet hates in spite<br/>\n Of all the solemn talk of contemplation.<br/>\n Oh, Alexander Selkirk knew the plight<br/>\n Of being king and government and nation.<br/>\n A road, a mile of kingdom. I am king<br/>\n Of banks and stones and every blooming thing.<br/>\n "
}
]
}
]
} Responses and scoring
This element displays content and collects no scored response.
Model, configuration and session reference
The model holds content, configuration controls the editor, and the session holds the response. Fields below come from generated JSON Schemas.
Schema version: @pie-element/passage@8.0.6. Example version: 8.0.4. Use the schema matching your content. Schema checks cover data structure; controller validation checks authoring rules.
model fields (11)
| Field | Type | Meaning | Default / values |
|---|---|---|---|
idRequired | string | Identifier to identify the Pie Element in html markup, Must be unique within a pie item config. | — |
elementRequired | string | The html Element tag name: the key in the item config's `elements` map, e.g. "multiple-choice" | — |
accessibilityCatalogs | array | QTI-aligned accessibility catalogs whose cards dock to content nodes by `data-catalog-idref` | — |
passagesRequired | array | The passages, in tab order | — |
teacherInstructionsEnabled | boolean | Indicates if Teacher Instructions are enabled | true |
titleEnabled | boolean | Indicates if title is enabled | true |
subtitleEnabled | boolean | Indicates if subtitle is enabled | true |
textEnabled | boolean | Indicates if text is enabled | true |
authorEnabled | boolean | Indicates if author is enabled. The author's default model sets true. | false |
language | string | Indicates the language of the component Supported options: en, es, en_US, en-US, es_ES, es-ES, es_MX, es-MX | — |
extraCSSRules | ExtraCSSRules | Host-supplied CSS scoped to the element | — |
Named object types
AccessibilityCatalog
| Field | Type | Meaning | Default / values |
|---|---|---|---|
identifierRequired | string | See the named type or the example model. | — |
cardsRequired | array | See the named type or the example model. | — |
CatalogCard
| Field | Type | Meaning | Default / values |
|---|---|---|---|
catalogRequired | string | See the named type or the example model. | — |
language | string | See the named type or the example model. | — |
content | string | See the named type or the example model. | — |
payload | CatalogCardPayload | See the named type or the example model. | — |
SignLanguageCardPayload
| Field | Type | Meaning | Default / values |
|---|---|---|---|
signLang | string | Language tag for the signed translation — BCP 47, which admits ISO 639-3 subtags for languages with no 639-1/2 code. "ase" is ASL, matching QTI 3 `xml:lang`. This is the language of the *adaptation*, not the item's base content language (AfA/PNP's `languageOfAdaptation`). The distinction is load bearing: a Spanish item's signed alternate is LSM, not ASL, so `signLang` must never be inferred from the item or assessment content language. Optional, and redundant on almost every card. The card's `language` states the same code and is the only field pie-players resolves a card on — resolution runs before anything knows the card is a signing card, so it can only key on the generic field — and the player falls back to it when this is absent. Author it only where the two differ: a card tagged with the item's content language (`language: 'en-US'`, `signLang: 'ase'`) so resolution reaches it by the default-language rung. The pie-api-aws importer emits `language` alone. | — |
mediaRequired | MediaAssetRef | See the named type or the example model. | — |
fragment | MediaFragmentRange | See the named type or the example model. | — |
MediaAssetRef
| Field | Type | Meaning | Default / values |
|---|---|---|---|
versionRequired | number | See the named type or the example model. | — |
idRequired | string | See the named type or the example model. | — |
kindRequired | MediaKind | See the named type or the example model. | — |
sourcesRequired | array | See the named type or the example model. | — |
poster | string | See the named type or the example model. | — |
thumbnail | string | See the named type or the example model. | — |
durationSeconds | number | See the named type or the example model. | — |
tracks | array | See the named type or the example model. | — |
transcript | TranscriptRef | See the named type or the example model. | — |
label | string | See the named type or the example model. | — |
description | string | See the named type or the example model. | — |
lang | string | Language of the asset itself, as authored metadata. Sign-language cards leave it unset: the card's `language` already states the adaptation language, and a second copy is a second thing to keep in agreement. | — |
MediaSource
| Field | Type | Meaning | Default / values |
|---|---|---|---|
srcRequired | string | See the named type or the example model. | — |
type | string | MIME type, e.g. "video/mp4". | — |
width | number | See the named type or the example model. | — |
height | number | See the named type or the example model. | — |
bitrate | number | See the named type or the example model. | — |
TextTrackRef
| Field | Type | Meaning | Default / values |
|---|---|---|---|
srcRequired | string | See the named type or the example model. | — |
kindRequired | string | See the named type or the example model. | —["captions","subtitles","descriptions","chapters","metadata"] |
langRequired | string | See the named type or the example model. | — |
labelRequired | string | See the named type or the example model. | — |
default | boolean | See the named type or the example model. | — |
TranscriptRef
| Field | Type | Meaning | Default / values |
|---|---|---|---|
src | string | See the named type or the example model. | — |
html | string | See the named type or the example model. | — |
plainText | string | See the named type or the example model. | — |
lang | string | See the named type or the example model. | — |
MediaFragmentRange
| Field | Type | Meaning | Default / values |
|---|---|---|---|
startSecondsRequired | number | See the named type or the example model. | — |
endSeconds | number | See the named type or the example model. | — |
SpokenAudioCardPayload
| Field | Type | Meaning | Default / values |
|---|---|---|---|
mediaRequired | MediaAssetRef | See the named type or the example model. | — |
fragment | MediaFragmentRange | See the named type or the example model. | — |
PassageEntry
| Field | Type | Meaning | Default / values |
|---|---|---|---|
title | string | The title of the passage; a passage without a title is labelled "Passage <n>" | — |
subtitle | string | The subtitle of the passage | — |
author | string | The author of the passage | — |
text | string | The content of the passage | — |
teacherInstructions | string | Indicates teacher instructions | — |
teacherInstructionsEnabled | boolean | Overrides the model's `teacherInstructionsEnabled` for this passage | — |
titleEnabled | boolean | Overrides the model's `titleEnabled` for this passage | — |
subtitleEnabled | boolean | Overrides the model's `subtitleEnabled` for this passage | — |
authorEnabled | boolean | Overrides the model's `authorEnabled` for this passage | — |
textEnabled | boolean | Overrides the model's `textEnabled` for this passage | — |
ExtraCSSRules
| Field | Type | Meaning | Default / values |
|---|---|---|---|
names | array | See the named type or the example model. | — |
rules | string | See the named type or the example model. | — |
configuration fields (13)
| Field | Type | Meaning | Default / values |
|---|---|---|---|
settingsPanelDisabled | boolean | Indicates if the settings panel is not available | — |
title | EditableHtmlPluginConfigureRequired | Title configuration | — |
subtitle | EditableHtmlPluginConfigureRequired | Subtitle configuration | — |
author | EditableHtmlPluginConfigureRequired | Author configuration | — |
text | EditableHtmlPluginConfigureRequired | Text configuration | — |
teacherInstructions | EditableHtmlPluginConfigureRequired | Teacher Instructions configuration | — |
maxImageWidth | PassageMaxImageDimensionsProp | Maximum image width for input fields | — |
maxImageHeight | PassageMaxImageDimensionsProp | Maximum image height for input fields | — |
mathMlOptions | ConfigureMathMLProp | Configuration for editable-html | — |
baseInputConfiguration | EditableHtmlConfigureProp | Base editable html input configuration regarding plugins that are enabled/disabled E.g. audio, video, image | — |
language | ConfigurePropWithEnabled | Language configuration | — |
languageChoices | ConfigureLanguageOptions | Language choices configuration Only available if language is enabled | — |
additionalPassage | ConfigurePropWithEnabled | ability to include a second passage | — |
Named object types
EditableHtmlPluginConfigureRequired
| Field | Type | Meaning | Default / values |
|---|---|---|---|
settings | boolean | Indicates if the item has to be displayed in the Settings Panel | — |
label | string | Indicates the label for the item that has to be displayed in the Settings Panel | — |
inputConfiguration | EditableHtmlConfigureProp | Configuration for editable-html | — |
required | boolean | Indicates if the item is required and the value cannot be empty | — |
EditableHtmlConfigureProp
| Field | Type | Meaning | Default / values |
|---|---|---|---|
math | EditableHtmlButtonConfigure | See the named type or the example model. | — |
audio | EditableHtmlButtonConfigure | See the named type or the example model. | — |
video | EditableHtmlButtonConfigure | See the named type or the example model. | — |
image | EditableHtmlButtonConfigure | See the named type or the example model. | — |
customPlugins | array | An array of objects that determine custom plugins. A custom plugin is an object which determines how the button will look like (icon) and the event name that will be triggered when the button gets pressed (event). | — |
blockquote | EditableHtmlButtonConfigure | See the named type or the example model. | — |
h3 | EditableHtmlButtonConfigure | See the named type or the example model. | — |
characters | EditableHtmlButtonConfigure | See the named type or the example model. | — |
bold | EditableHtmlButtonConfigure | See the named type or the example model. | — |
html | EditableHtmlButtonConfigure | See the named type or the example model. | — |
italic | EditableHtmlButtonConfigure | See the named type or the example model. | — |
ol_list | EditableHtmlButtonConfigure | See the named type or the example model. | — |
redo | EditableHtmlButtonConfigure | See the named type or the example model. | — |
strikethrough | EditableHtmlButtonConfigure | See the named type or the example model. | — |
sub | EditableHtmlButtonConfigure | See the named type or the example model. | — |
sup | EditableHtmlButtonConfigure | See the named type or the example model. | — |
table | EditableHtmlButtonConfigure | See the named type or the example model. | — |
ul_list | EditableHtmlButtonConfigure | See the named type or the example model. | — |
underline | EditableHtmlButtonConfigure | See the named type or the example model. | — |
undo | EditableHtmlButtonConfigure | See the named type or the example model. | — |
textAlign | EditableHtmlButtonConfigure | See the named type or the example model. | — |
showParagraphs | EditableHtmlButtonConfigure | See the named type or the example model. | — |
separateParagraphs | EditableHtmlButtonConfigure | See the named type or the example model. | — |
pasteFormatting | EditableHtmlButtonConfigure | See the named type or the example model. | — |
superscript | EditableHtmlButtonConfigure | See the named type or the example model. | — |
subscript | EditableHtmlButtonConfigure | See the named type or the example model. | — |
languageCharacters | EditableHtmlButtonConfigure | See the named type or the example model. | — |
responseArea | EditableHtmlButtonConfigure | See the named type or the example model. | — |
EditableHtmlButtonConfigure
| Field | Type | Meaning | Default / values |
|---|---|---|---|
disabled | boolean | Indicates if the plugin is disabled or not | — |
CustomPlugin
| Field | Type | Meaning | Default / values |
|---|---|---|---|
eventRequired | string | The name of the custom event. It needs to be valid (only letters, numbers and "_" can be used). The event is emitted with the "PIE-" prefix. | — |
iconAltRequired | string | The alt for the custom button icon | — |
iconTypeRequired | string | The icon type. Currently, only "SVG" is supported. | — |
iconRequired | string | The icon string. Currently, only SVG is supported, so it needs to be a valid svg. | — |
PassageMaxImageDimensionsProp
| Field | Type | Meaning | Default / values |
|---|---|---|---|
teacherInstructions | number | Indicates the max dimension for images in teacher instructions | — |
prompt | number | Indicates the max dimension for images in prompt - this is also the default dimension for all other input fields if it's not specified | — |
rationale | number | Indicates the max dimension for images in rationale | — |
text | number | Indicates the max dimension for images in the passage text | — |
ConfigureMathMLProp
| Field | Type | Meaning | Default / values |
|---|---|---|---|
mmlOutput | boolean | Indicates if model should have mathML output instead of latex | — |
mmlEditing | boolean | Indicates if mathML that's already in model should be editable | — |
ConfigurePropWithEnabled
| Field | Type | Meaning | Default / values |
|---|---|---|---|
settings | boolean | Indicates if the item has to be displayed in the Settings Panel | — |
label | string | Indicates the label for the item that has to be displayed in the Settings Panel | — |
enabled | boolean | Indicates the value of the item if it affects config-ui (eg.: if item is a switch and displaying an input on the config-ui depends on the switch value: on/off) | — |
ConfigureLanguageOptions
| Field | Type | Meaning | Default / values |
|---|---|---|---|
labelRequired | string | See the named type or the example model. | — |
optionsRequired | array | See the named type or the example model. | — |
ConfigureLanguageOptionsProp
| Field | Type | Meaning | Default / values |
|---|---|---|---|
valueRequired | string | Value of the language option | — |
labelRequired | string | Label of the language option | — |
session fields (2)
| Field | Type | Meaning | Default / values |
|---|---|---|---|
id | string | Identifier of the session | — |
element | string | The element the session belongs to | — |
Accessibility and content requirements
PIE targets WCAG 2.2 AA. Provide clear prompts and media alternatives, and test the question with a keyboard and assistive technology. Manual testing is still incomplete; see the coverage notes below.
Accessibility and evidence · Element evidence and manual checks(opens in new tab)
Element package source(opens in new tab) · Example source(opens in new tab) · Snapshot cb30a68f
