Content and scoring

Video Stimulus

Watch a captioned video with a transcript.

Delivery

Respond, review and evaluate

Authoring

Visual editor available

No print view in this package

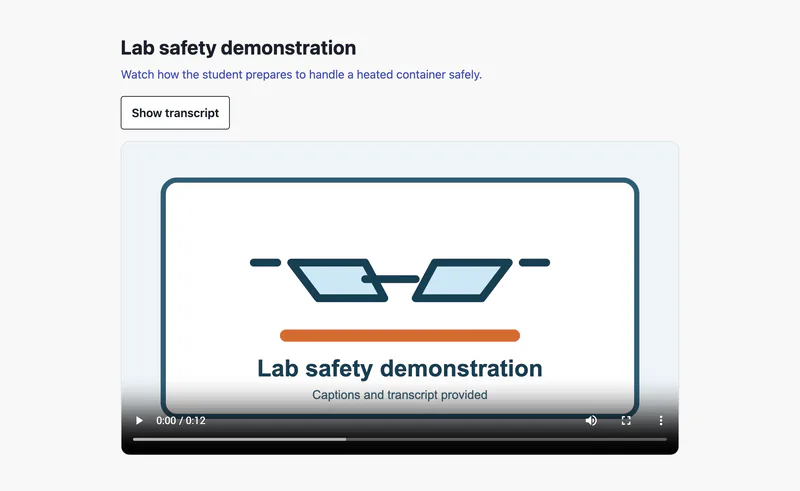

The title "Lab safety demonstration" and the description "Watch how the student prepares to handle a heated container safely." above a "Show transcript" button and a paused 12-second video whose first frame shows safety goggles and the words "Captions and transcript provided". — Video Stimulus example

Try the interaction

Live example: @pie-element/video-stimulus@0.1.3 · players 1.0.0-beta.5.

Open all examples for this element →

Use it in an item

Map the tag to an exact package version and match the model ID to the markup. The item player loads the views. You can use any frontend framework.

{
  "elements": {
    "video-stimulus": "@pie-element/video-stimulus@0.1.3"
  },
  "markup": "<video-stimulus id=\"example\"></video-stimulus>",
  "models": [
    {
      "id": "example",
      "element": "video-stimulus",
      "language": "en",
      "media": {
        "version": 1,
        "id": "lab-safety-demonstration",
        "kind": "video",
        "label": "Lab safety demonstration",
        "description": "Watch how the student prepares to handle a heated container safely.",
        "lang": "en",
        "sources": [
          {
            "src": "/demo-assets/elements/video-stimulus/sample.webm",
            "type": "video/webm"
          }
        ],
        "tracks": [
          {
            "src": "/demo-assets/elements/video-stimulus/captions-en.vtt",
            "kind": "captions",
            "lang": "en",
            "label": "English",
            "default": true
          }
        ],
        "transcript": {
          "lang": "en",
          "plainText": "Step one. Put on safety goggles before handling laboratory materials. Step two. Use heat-resistant gloves when touching a heated container. Step three. Place the container on a heat-safe surface, away from paper."
        }
      },
      "presentation": {
        "showLabel": true,
        "showDescription": true,
        "transcriptInitiallyExpanded": false
      },
      "accessibilityProfile": {
        "audioContent": "meaningful",
        "captionSupport": "track",
        "visualSupport": "described"
      }
    }
  ]
}

Embed an item · Embed authoring · Print integration

Responses and scoring

This element displays content and collects no scored response.

Scoring, partial credit and rubrics →

Model, configuration and session reference

The model holds content, configuration controls the editor, and the session holds the response. Fields below come from generated JSON Schemas.

Schema version: @pie-element/video-stimulus@0.1.5. Example version: 0.1.3. Use the schema matching your content. Schema checks cover data structure; controller validation checks authoring rules.

model fields (8)

Field	Type	Meaning	Default / values
`id`Required	`string`	Identifier to identify the Pie Element in html markup, Must be unique within a pie item config.	`—`
`element`Required	`string`	The html Element tag name: the key in the item config's `elements` map, e.g. "multiple-choice"	`—`
`accessibilityCatalogs`	`array`	QTI-aligned accessibility catalogs whose cards dock to content nodes by `data-catalog-idref`	`—`
`media`Required	`MediaAssetRef`	The video: its sources, text tracks, transcript, label and description. Delivery reads it only when `version` is 1 and `kind` is `video`; `validate()` also requires `id`, `label`, `lang` and a playable source.	`—`
`language`	`string`	The learner-facing strings' language, a BCP 47 tag; an invalid tag reads as `en`.	`"en"`
`presentation`	`VideoStimulusPresentation`	What delivery shows around the video	`—`
`accessibilityProfile`	`VideoStimulusAccessibilityProfile`	The author's accessibility declarations	`—`
`uiText`	`object`	Overrides of the learner-facing strings by name; a blank value keeps the default	`—`

Named object types

AccessibilityCatalog

Field	Type	Meaning	Default / values
`identifier`Required	`string`	See the named type or the example model.	`—`
`cards`Required	`array`	See the named type or the example model.	`—`

CatalogCard

Field	Type	Meaning	Default / values
`catalog`Required	`string`	See the named type or the example model.	`—`
`language`	`string`	See the named type or the example model.	`—`
`content`	`string`	See the named type or the example model.	`—`
`payload`	`CatalogCardPayload`	See the named type or the example model.	`—`

SignLanguageCardPayload

Field	Type	Meaning	Default / values
`signLang`	`string`	Language tag for the signed translation — BCP 47, which admits ISO 639-3 subtags for languages with no 639-1/2 code. "ase" is ASL, matching QTI 3 `xml:lang`. This is the language of the adaptation, not the item's base content language (AfA/PNP's `languageOfAdaptation`). The distinction is load bearing: a Spanish item's signed alternate is LSM, not ASL, so `signLang` must never be inferred from the item or assessment content language. Optional, and redundant on almost every card. The card's `language` states the same code and is the only field pie-players resolves a card on — resolution runs before anything knows the card is a signing card, so it can only key on the generic field — and the player falls back to it when this is absent. Author it only where the two differ: a card tagged with the item's content language (`language: 'en-US'`, `signLang: 'ase'`) so resolution reaches it by the default-language rung. The pie-api-aws importer emits `language` alone.	`—`
`media`Required	`MediaAssetRef`	See the named type or the example model.	`—`
`fragment`	`MediaFragmentRange`	See the named type or the example model.	`—`

MediaAssetRef

Field	Type	Meaning	Default / values
`version`Required	`number`	See the named type or the example model.	`—`
`id`Required	`string`	See the named type or the example model.	`—`
`kind`Required	`MediaKind`	See the named type or the example model.	`—`
`sources`Required	`array`	See the named type or the example model.	`—`
`poster`	`string`	See the named type or the example model.	`—`
`thumbnail`	`string`	See the named type or the example model.	`—`
`durationSeconds`	`number`	See the named type or the example model.	`—`
`tracks`	`array`	See the named type or the example model.	`—`
`transcript`	`TranscriptRef`	See the named type or the example model.	`—`
`label`	`string`	See the named type or the example model.	`—`
`description`	`string`	See the named type or the example model.	`—`
`lang`	`string`	Language of the asset itself, as authored metadata. Sign-language cards leave it unset: the card's `language` already states the adaptation language, and a second copy is a second thing to keep in agreement.	`—`

MediaSource

Field	Type	Meaning	Default / values
`src`Required	`string`	See the named type or the example model.	`—`
`type`	`string`	MIME type, e.g. "video/mp4".	`—`
`width`	`number`	See the named type or the example model.	`—`
`height`	`number`	See the named type or the example model.	`—`
`bitrate`	`number`	See the named type or the example model.	`—`

TextTrackRef

Field	Type	Meaning	Default / values
`src`Required	`string`	See the named type or the example model.	`—`
`kind`Required	`string`	See the named type or the example model.	`—`["captions","subtitles","descriptions","chapters","metadata"]
`lang`Required	`string`	See the named type or the example model.	`—`
`label`Required	`string`	See the named type or the example model.	`—`
`default`	`boolean`	See the named type or the example model.	`—`

TranscriptRef

Field	Type	Meaning	Default / values
`src`	`string`	See the named type or the example model.	`—`
`html`	`string`	See the named type or the example model.	`—`
`plainText`	`string`	See the named type or the example model.	`—`
`lang`	`string`	See the named type or the example model.	`—`

MediaFragmentRange

Field	Type	Meaning	Default / values
`startSeconds`Required	`number`	See the named type or the example model.	`—`
`endSeconds`	`number`	See the named type or the example model.	`—`

SpokenAudioCardPayload

Field	Type	Meaning	Default / values
`media`Required	`MediaAssetRef`	See the named type or the example model.	`—`
`fragment`	`MediaFragmentRange`	See the named type or the example model.	`—`

VideoStimulusPresentation

Field	Type	Meaning	Default / values
`showLabel`	`boolean`	`false` hides `media.label` visually; it stays the video's accessible name	`true`
`showDescription`	`boolean`	`false` hides `media.description`	`true`
`transcriptInitiallyExpanded`	`boolean`	Opens the transcript on first render	`false`

VideoStimulusAccessibilityProfile

Field	Type	Meaning	Default / values
`audioContent`	`AudioContentDeclaration`	Whether the audio carries meaning; `meaningful` requires captions	`"unknown"`
`captionSupport`	`CaptionSupportDeclaration`	How captions are provided; `track` requires a valid captions track in `media.tracks`	`"unknown"`
`visualSupport`	`VisualSupportDeclaration`	Whether the visuals are described; `missing` fails validation	`"unknown"`

Open the complete JSON Schema

configuration fields (3)

Field	Type	Meaning	Default / values
`media`	`ConfigureProp`	Not read	`—`
`presentation`	`ConfigureProp`	Not read	`—`
`accessibilityProfile`	`ConfigureProp`	Not read	`—`

Named object types

ConfigureProp

Field	Type	Meaning	Default / values
`settings`	`boolean`	Indicates if the item has to be displayed in the Settings Panel	`—`
`label`	`string`	Indicates the label for the item that has to be displayed in the Settings Panel	`—`

Open the complete JSON Schema

session fields (2)

Field	Type	Meaning	Default / values
`id`	`string`	Identifier of the session	`—`
`element`	`string`	The element the session belongs to	`—`

Open the complete JSON Schema

How to use the schemas →

Accessibility and content requirements

PIE targets WCAG 2.2 AA. Provide clear prompts and media alternatives, and test the question with a keyboard and assistive technology. Manual testing is still incomplete; see the coverage notes below.

Accessibility and evidence · Element coverage tracking(opens in new tab)

Element package source(opens in new tab) · Example source(opens in new tab) · Snapshot cb30a68f
